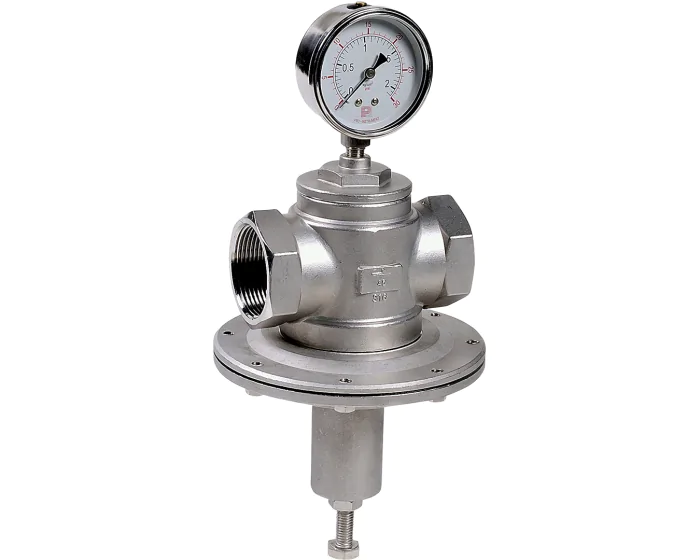

The ELITE pressure reducing valve type LPRV in ATEX stainless steel is intended for the pressure reducing function of fluids such as water, air, uncharged liquids and compatible gases.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 285.0 |
| Sealing | FKM |
| Gasket | FKM |
| Kv (m³/h) | 2.10 |
| Body material | Stainless steel CF8M (1.4408) |
| Downstream pressure range (bar) | 0.2 / 1.5 |
| PS (bar) | 10 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | -15 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' | 243001 | S1011947 |
€633.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' | 243011 | S1011948 |
€661.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' | 243021 | S1011949 |
€649.74
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 243031 | S1011950 |
€1,109.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' | 243041 | S1011951 |
€1,138.57
(excl. btw)
|
add to cart |
